Room color plate
一、Product introduction

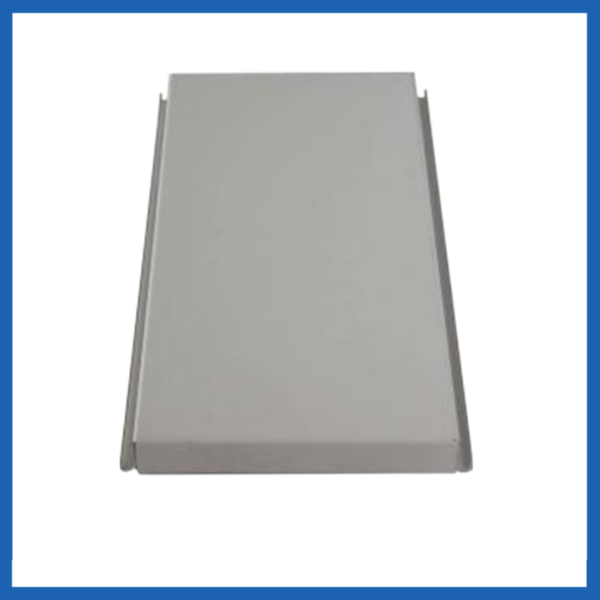

1.The metal wallboard is composed of 0.6mm rust-proof hot-soluble galvanized baking varnished steel plate and 12mm high-quality fire-proof gypsum board with inner lining.
2.Metal wall paint uses hardened polyester paint and high rust-proof paint on the back.
3.Components such as window frame, skyline, ground track, kickboard, side closure, etc., with electroplated or matt paint on the surface.
4.Separator Column Type C < 75 × 50, pipe wall column CH type < 65 × 35, 3.6m galvanized steel sheet for cross frame.
5.Door frame, door slice and window frame are all made of baking paint steel plate.
二、Product features
1.The surface is smooth and beautiful.
2.Light weight reduces floor load.
3.Standardized materials for prefabrication.
4.Flexible building materials never fall out of the turtle column.
5.Sound isolation up to 48dB quiet.
6.Smooth and flat surface without dust collection for easy maintenance.
7.No additional decoration is required for high quality surface decoration materials.
8.Baking paint galvanized steel plate with fire-proof board glue composite has strong impact resistance, does not shrink and does not distort.
9.Site construction quickly shortens the construction period, and the site is clean and tidy and has a high reuse rate.
10.Used together with smallpox and floors, it has uniform color, uniform interior decoration, beautiful appearance and fire prevention function.
11.Any piece can be detached and restored, which plays a convenient and fast role in the maintenance of hydropower lines, air conditioning pipelines, power outlets, etc.
12.Surface baking varnished steel plate has the characteristics of light weight, high strength, rich color, convenient and fast construction, anti-shock and fire protection, long life and maintenance-free, etc. Its reliable performance is the core material of the interior decoration part of the machine room.
三、Product knowledge: Standard board specifications
Product Specification_Width (W)Height (H)
BD 1180/980mm*3000mm
BD 1180/980mm*2800mm
BD 1180/980mm*2600mm
BD 1180/980mm*2500mm
Note: Height (H) can be customized
四、Key Installation Points:
1、When the keel is mounted, the center of the vertical keel is arranged and fixed to the wall every 590 mm, perpendicular and on the same plane.
2、Start from one side to install the colored steel plate, install successively, the connection plate spacing is 12mm. A 12 mm strip is used between the dividers, and the wall panels of standard units are interchangeable.
3、Wall corner corner corner closure is treated by "U" type corner closure method.
4、The corner of indoor columns and walls is treated by the "L" type corner closing method.
5、The corner of the wall is specially closed in the same color to keep the corner in line with the wall.
五、Scope of use
Single wall: computer center room walls, pipe panels, steel building interior and exterior wall panels, elevator rooms, pillar panels, dressing room panels, etc.
Cubicle wall: computer center machine room partition, indoor compartment, fire zone partition, office, conference room, dust-free room, electronics factory, pharmacy, hospital (x-ray room, etc.), food factory, laboratory, public place, etc.
